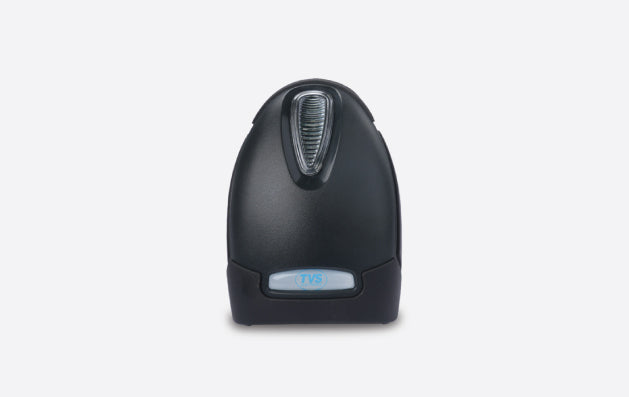

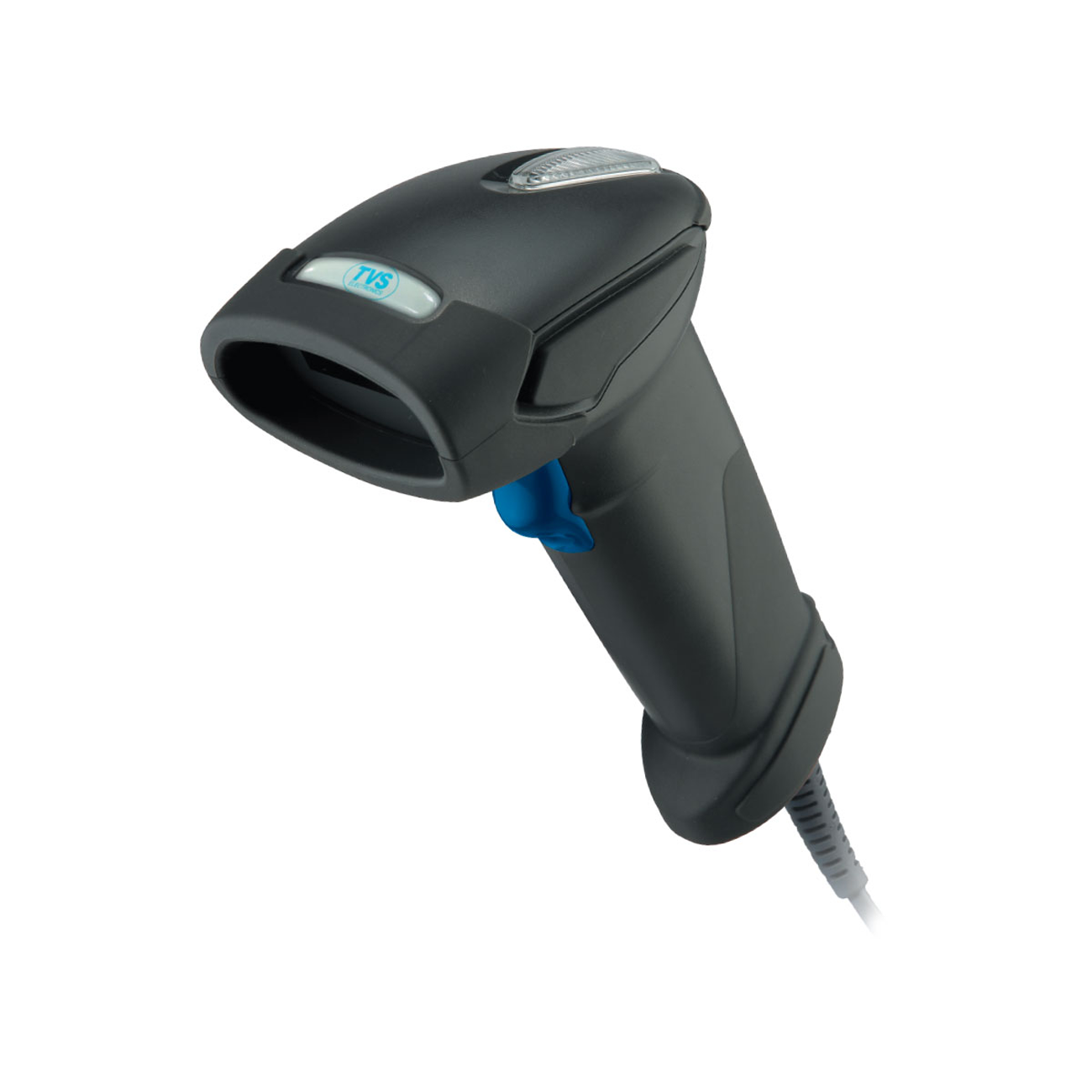

BS-C 103 Platina Scanner has the most advanced decoding technology that enables it to recognize most of the popular 1D barcodes (including GS1 and Databar). Its rugged, gun-type exterior design gives it a reliable exterior that can survive extremes of temperature and shock, and vibration. With a superior scanning performance (as high as 330 scans per second) the BS-C 103 Platina Scanner is undoubtedly reliable and predictable for all applications.
ADVANTAGES- 32-bit proprietary Ultrascan decoding technology
- GS1 Databar decoding capability
- Analog image capture technology
- 1.5 M drop resistance
-
Synthetic rubber handle for max. Protection
330 scans per second
Proprietary Ultra Scan Decoding Technology
Designed to withstand multiple drops from a height of 1.5 M
2500 pixels CCD| Light Source | 617 nm visible red LED |
| Optical System | Linear CCD array |
| Image Sensor | 2500 pixels CCD |
| Depth of Field | 20 – 320 mm (UPC/EAN 100%, PCS=90%) |
| Scan Angle | 42° |
| Pitch/Roll/Skew Angle | 75° / 25° / 60° |
| Scan Rate | 330 scans per second |
| Minimum Bar Width | 0.07 mm (3 mil) (Code 39, PCS = 90%) |
| Print Contrast | Min. 20 % @ UPC/EAN 100% |
| Indicator (LED) | Beeper and LED; optional vibrator |
| Programmable Operation | Beeper tone & volume |
| System Interfaces | Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS |
| Dimension | 147.0 × 62.0 × 114.5 mm (device only) |
| Weight | 120 g (device only) |
| Interface Cable | Field replaceable, standard 2M straight |
| Input Voltage | 5 VDC ±5% |
| Power Consumption | 0.6 watts |
| Operating Current | 110 mA typical |
| EMC | CE & FCC DOC compliance, VCCI, BSMI |
| Safety | IEC 62471 Exempt |
| Operating Temperature | 0°C – 50°C (32°F – 122°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Humidity | 5% – 95% RH (non-condensing) |
| Light Level | 0-100,000 Lux (fluorescence) |
| Drop Durability | Designed to withstand 1.5M drops |
| Environmental Sealing | IP 41 |
| 1D Barcode Support | UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF, Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, DTF, JAP, Code 11, RSS 14, RSS Limited, RSS Expanded |
| Warranty | 1 Year |
