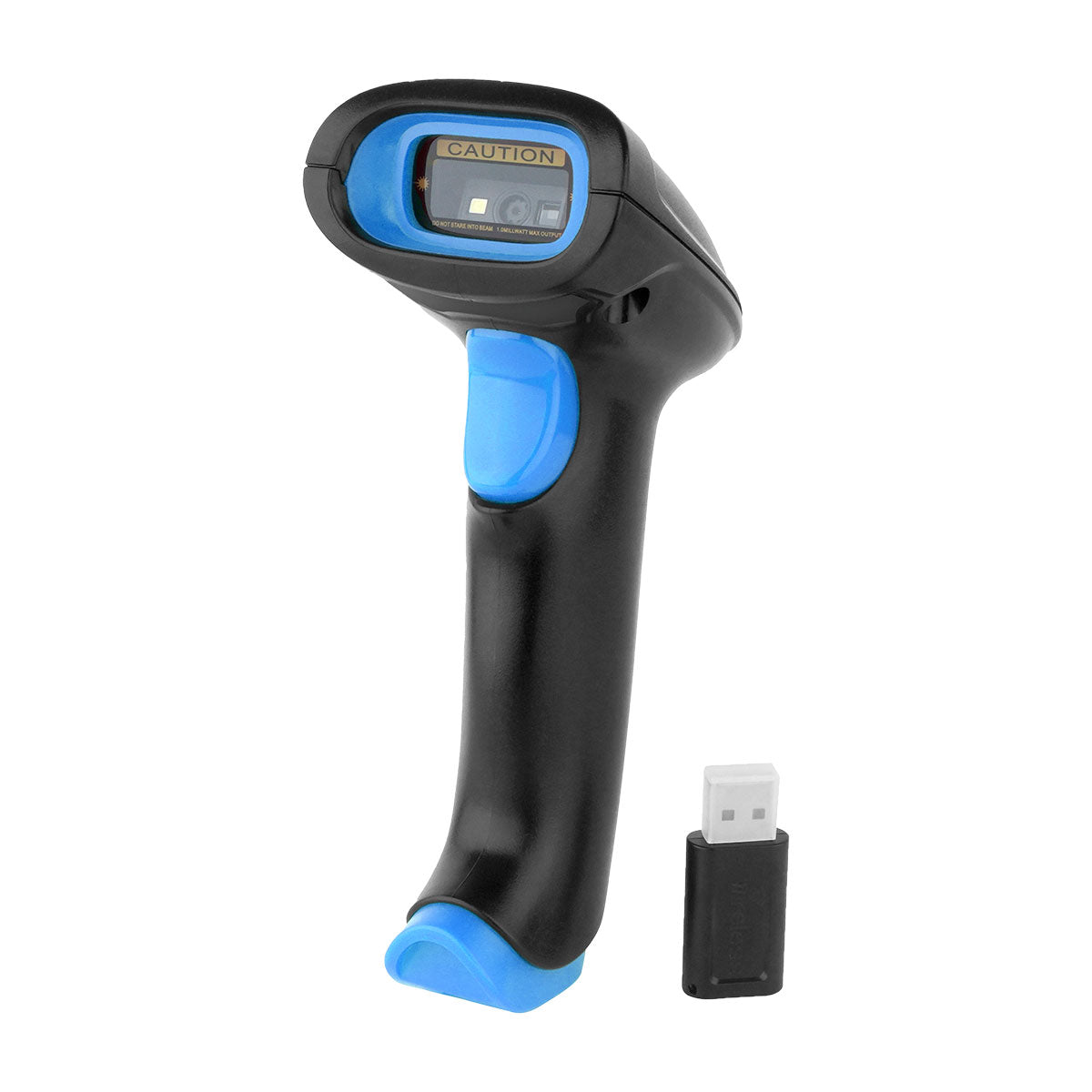

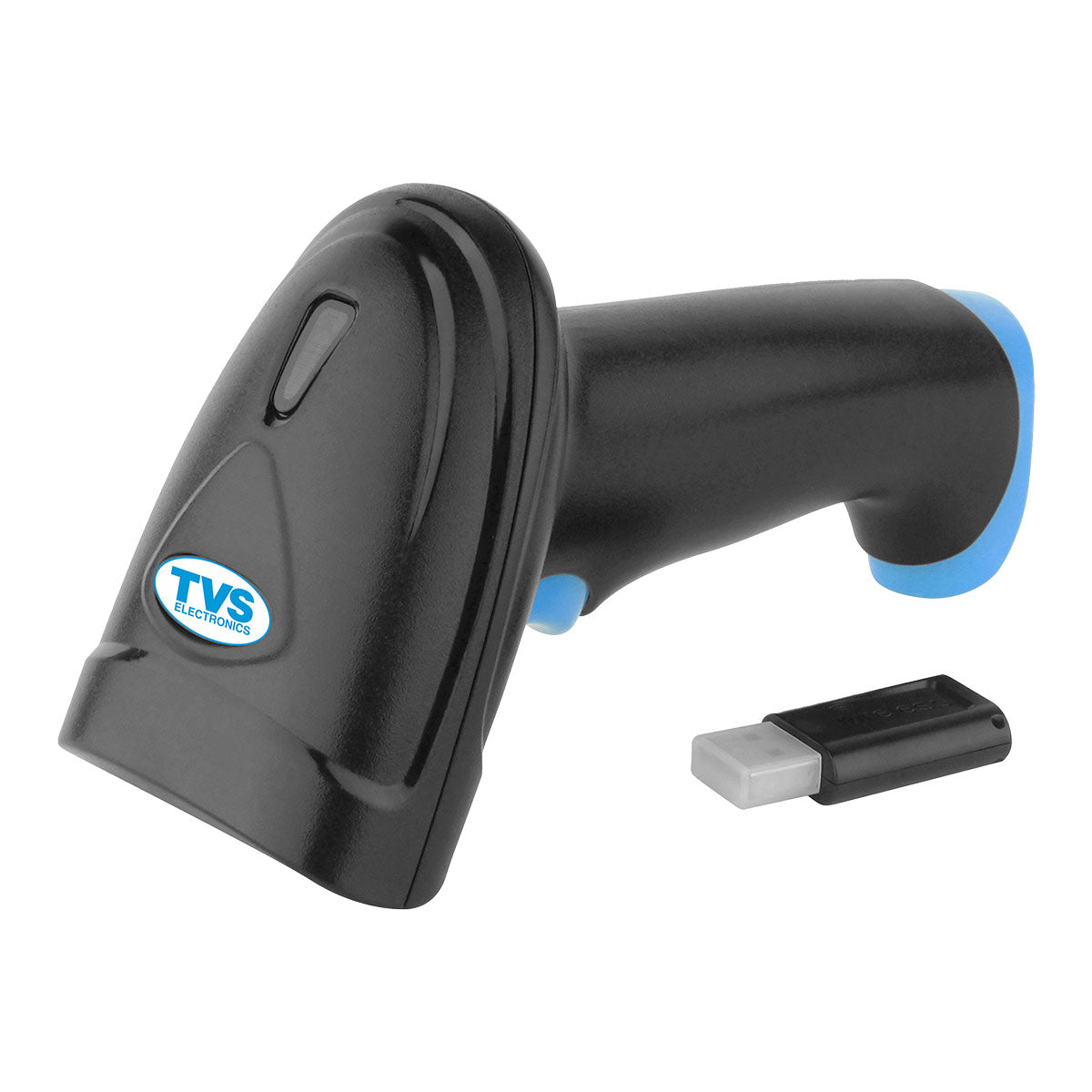

BS-I 201 S BT is an economical 2D Bluetooth scanner that provides wireless connectivity upto 25 metres of Line of Sight and is an affordable option for Small warehouses, Departmental stores, and Shopping malls.
ADVANTAGES- Wireless connectivity through dedicated Bluetooth Dongle compatible with windows, Android and iOS models
- Offline storage mode with capacity of 512000 characters
- Print contrast of 20%
SCANS BOTH 1D AND 2D BARCODES
CMOS TECHNOLOGY
SIMPLE TO OPERATE| Feature | Specification |
|---|---|
| Light Source | 617 nm LED Aimer, White LED |
| Supported Symbologies |
1D: EAN8, EAN13, UPCA, UPCE, CODE 39, CODE 93, CODE 128, EAN 128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI Plessey, GS1 Databar, Industrial 25, Standard 25 etc 2D: QR code, Data Matrix, PDF 417, Aztec, Maxi code |
| Scan Type | Image CMOS |
| Scan Speed | 200 scans/sec |
| Scan Angle | Yaw 55°, Rotation 30°, Pitch 55° |
| Precision | = 5 mil |
| Contrast | 20% |
| Error Rate | Less than 1/5 million |
| Interface | USB HID |
| Dimensions | 102 mm × 71 mm × 177 mm |
| Wireless Transmission Distance | ~ 25 meters |
| Storage Mode |
Offline Storage Mode: Stores data automatically when out of range (Capacity: 512,000 Characters) Inventory Storage Mode: Scanner can enter inventory mode (Capacity: 512,000 Characters) |
| Pairing Mode |
One to One: One scanning gun pairs with one receiver Bluetooth: One scanner paired with Bluetooth mobile device |
| Receiving End | Dedicated BT U disc receiver connecting Android/iOS mobile devices |
| Light Level | Can resist interference from lamplight and sunlight |
| Weight | 223 g |
| Operating Temperature | 20°C ~ 50°C |
| Storage Temperature | 40°C ~ 70°C |
| Relative Humidity | 5% ~ 95% |
| Battery Working Time | 7 hrs |
| Battery | Lithium battery, 2200 mA |
| Drop / Shock Resistance | Withstands a 1.5 m drop on concrete |
| Voltage | DC 5V ± 1% |
| Operating Current | When scanning: ≤ 26 mA, Not scanning: ≤ 280 mA |
| Standby Current | 0 mA |
