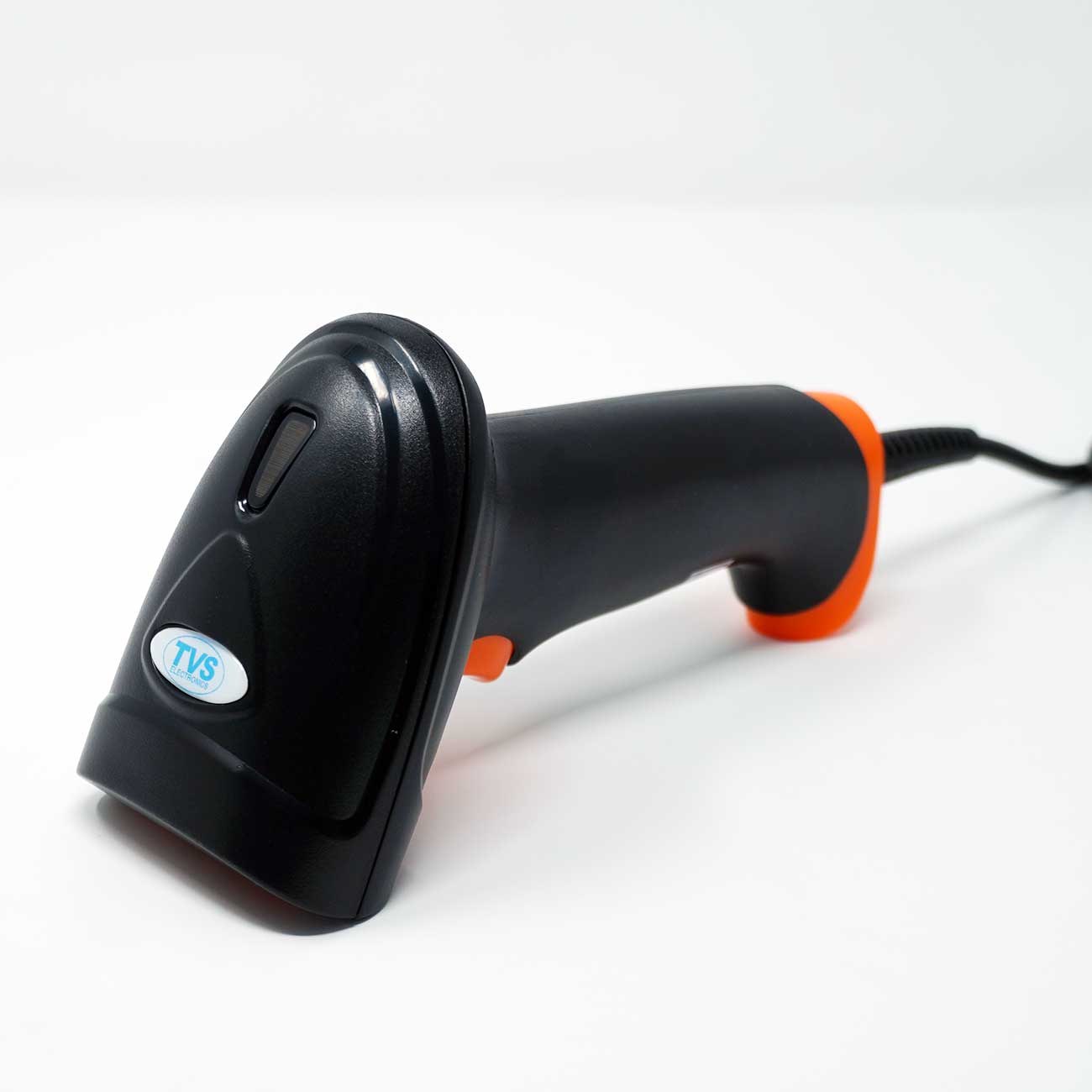

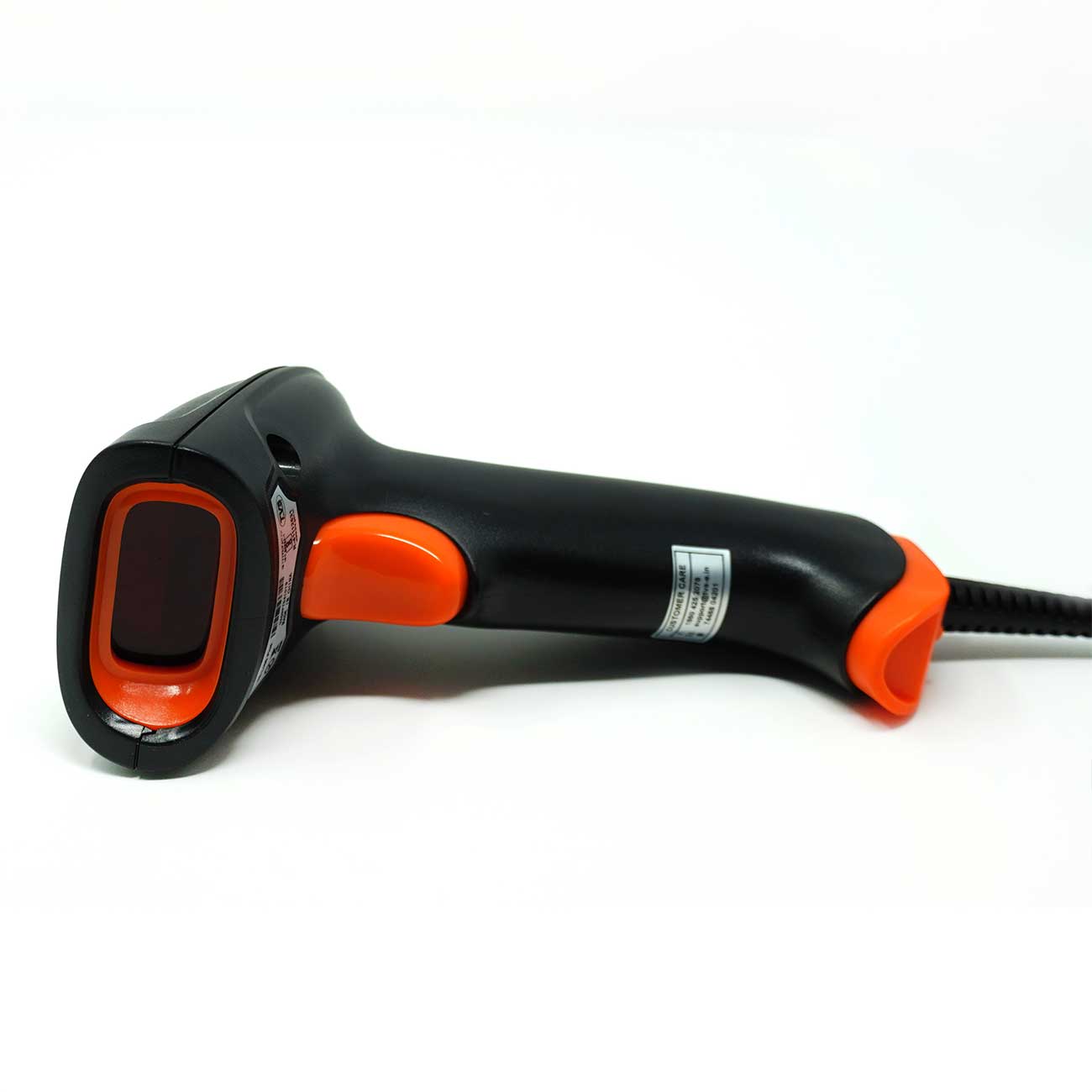

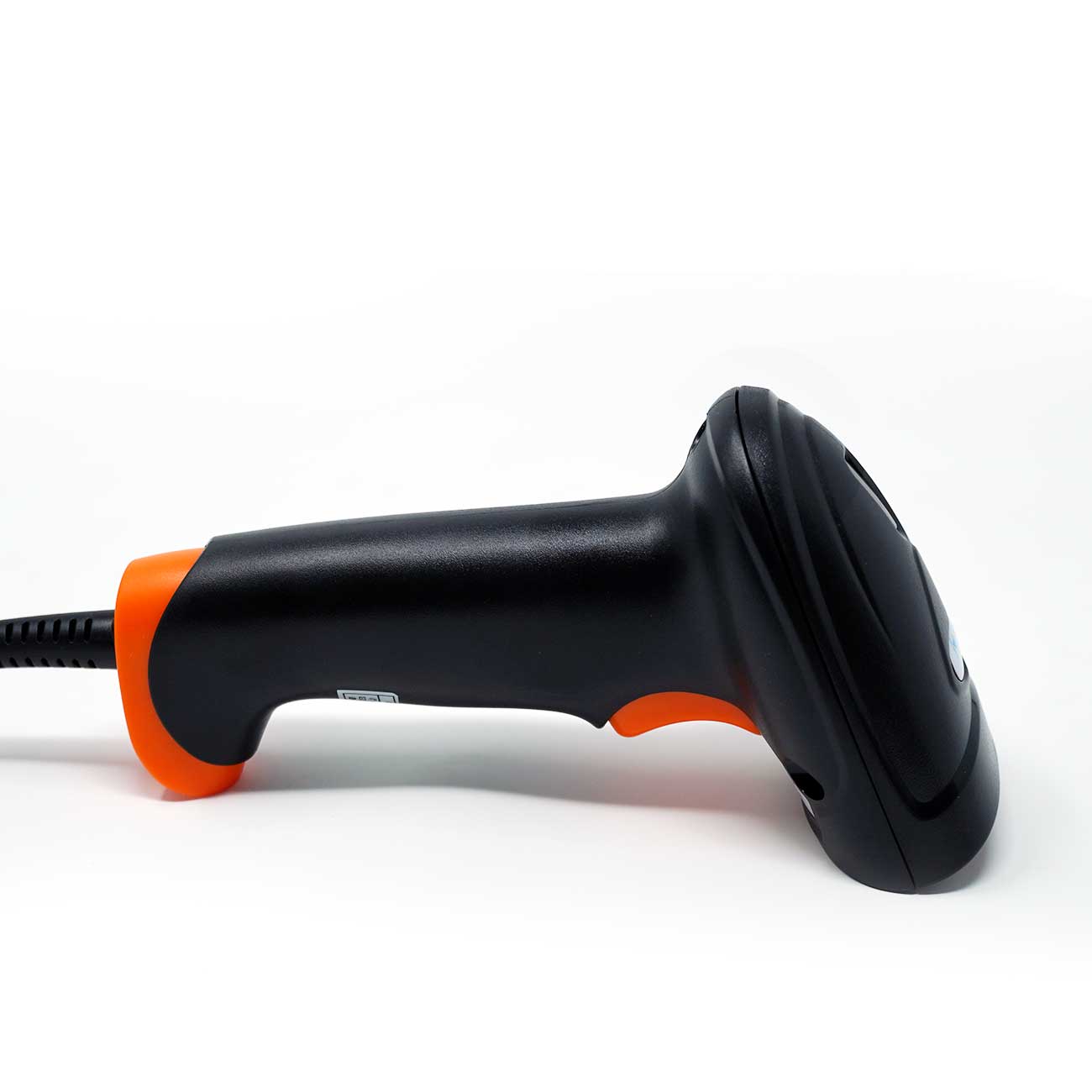

BS-L100 Plus is an affordable handheld Laser scanner that allows the user to easily target the desired bar code and provide complete data transmission by just triggering a button. This Laser scanner fits in various environments starting from small warehouses, offices, and retail shops.
ADVANTAGES- Reasonable cost and reliable option
- Minimal divergence of Laser beam provides high Depth of Focus on Bar codes
- Reads all standard 1D bar codes
PLUG AND PLAY DESIGN
POWERFUL SCANNING PERFORMANCE
1.5 M DROP RESISTANCE| Specification | Details |
|---|---|
| Light Source | 650 mm Laser |
| Supported Symbologies | EAN8, EAN13, UPCA, UPCE, CODE 39, CODE 93, CODE 128, EAN 128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, and all 1D bar codes |
| Scan Type | Single Laser |
| Scan Speed | 300 scans/sec |
| Scan Angle | Yaw 55°, Rotation 30°, Pitch 65° |
| Precision | >4 mil |
| Contrast | >20% |
| Depth of Scan Field | 0 - 280 mm |
| Error Rate | Less than 1/5 million |
| Interface | USB |
| Dimensions | 90 mm × 66 mm × 173 mm |
| Weight | 129.5 g |
| Cable Length | 2 M |
| Operating Temperature | 20°C ~ 50°C |
| Relative Humidity | 5% ~ 95% |
| Light Levels (Lux) | 3000 ~ 8000 Lux |
| Drop/Shock Resistance | Withstands a 1.5 m drop onto concrete |
| Voltage | DC 5V ± 1% |
| Operating Current | 85 mA |
| IP Rating | IP 51 |
