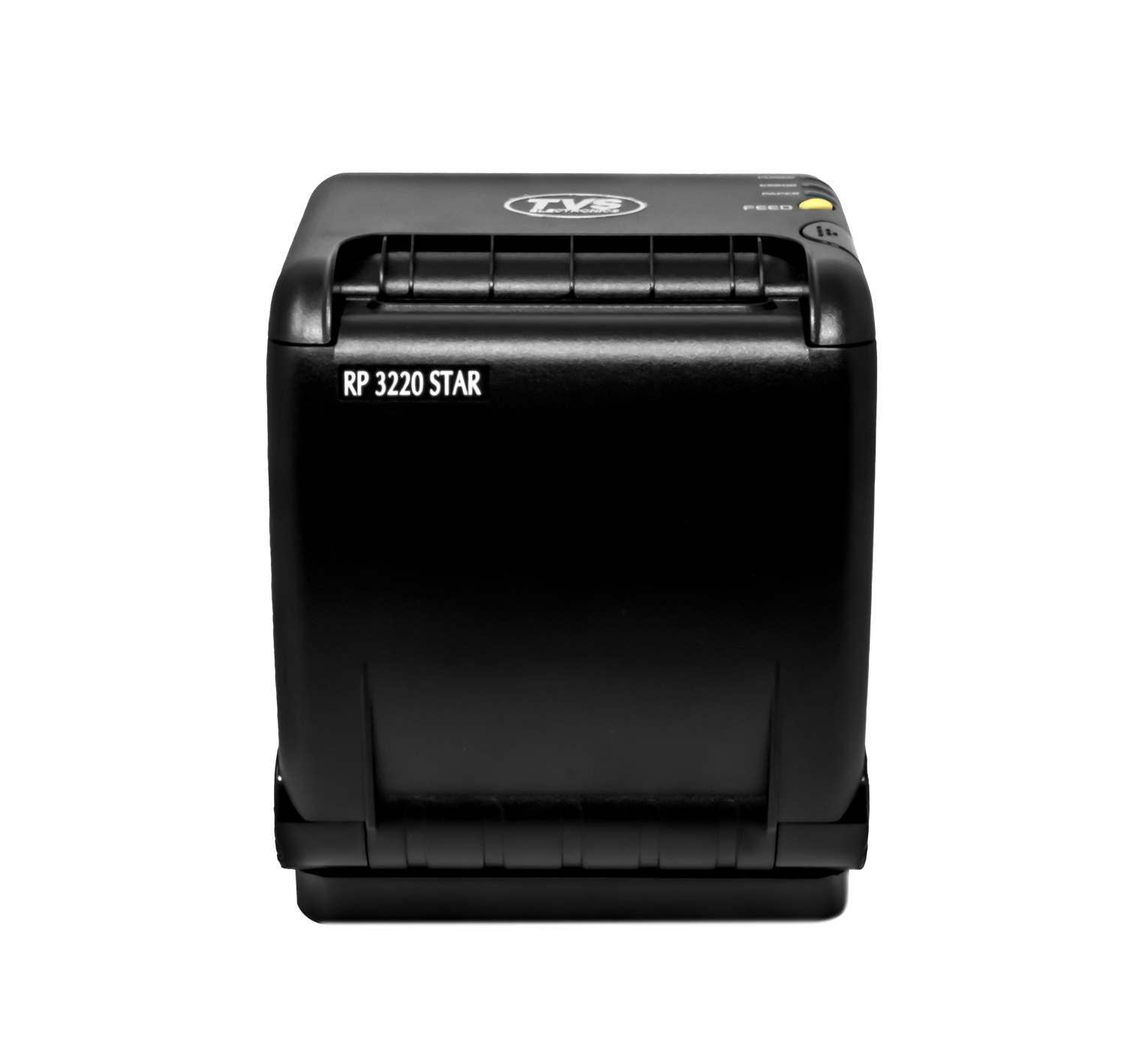

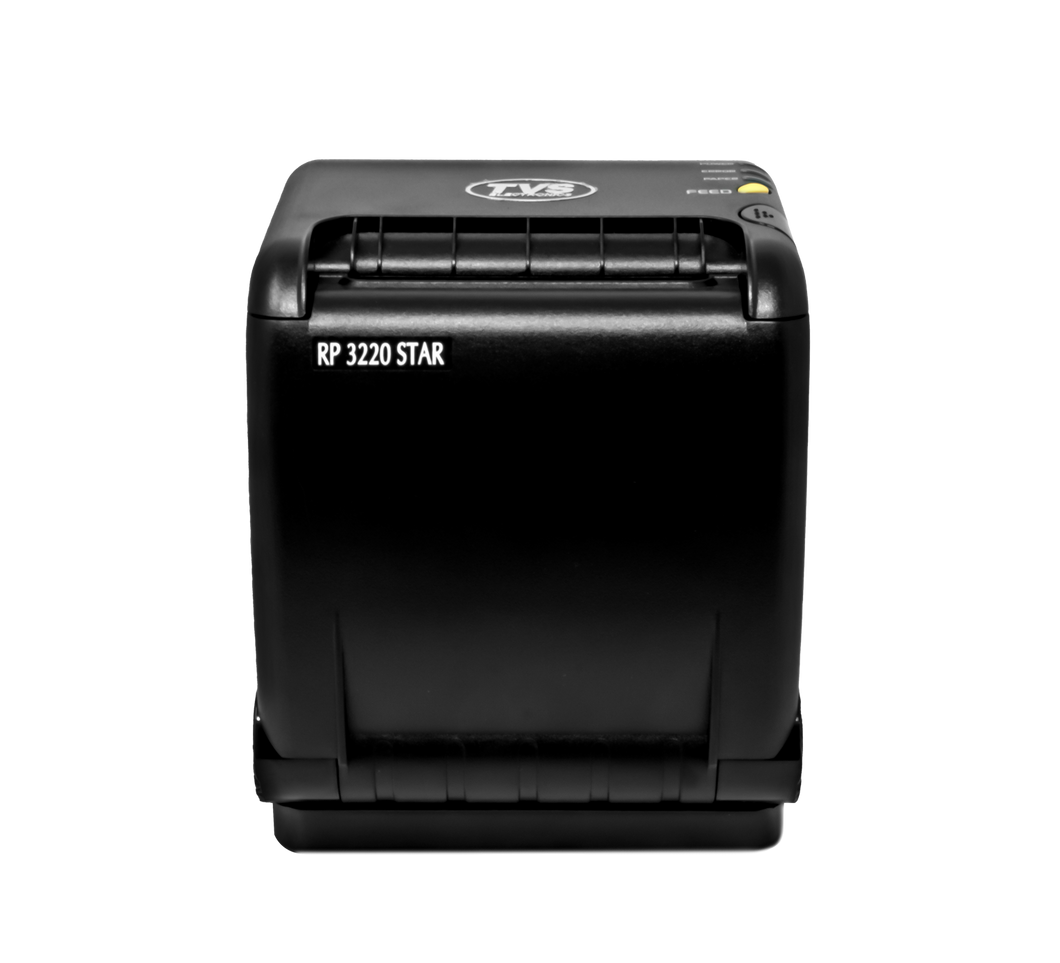

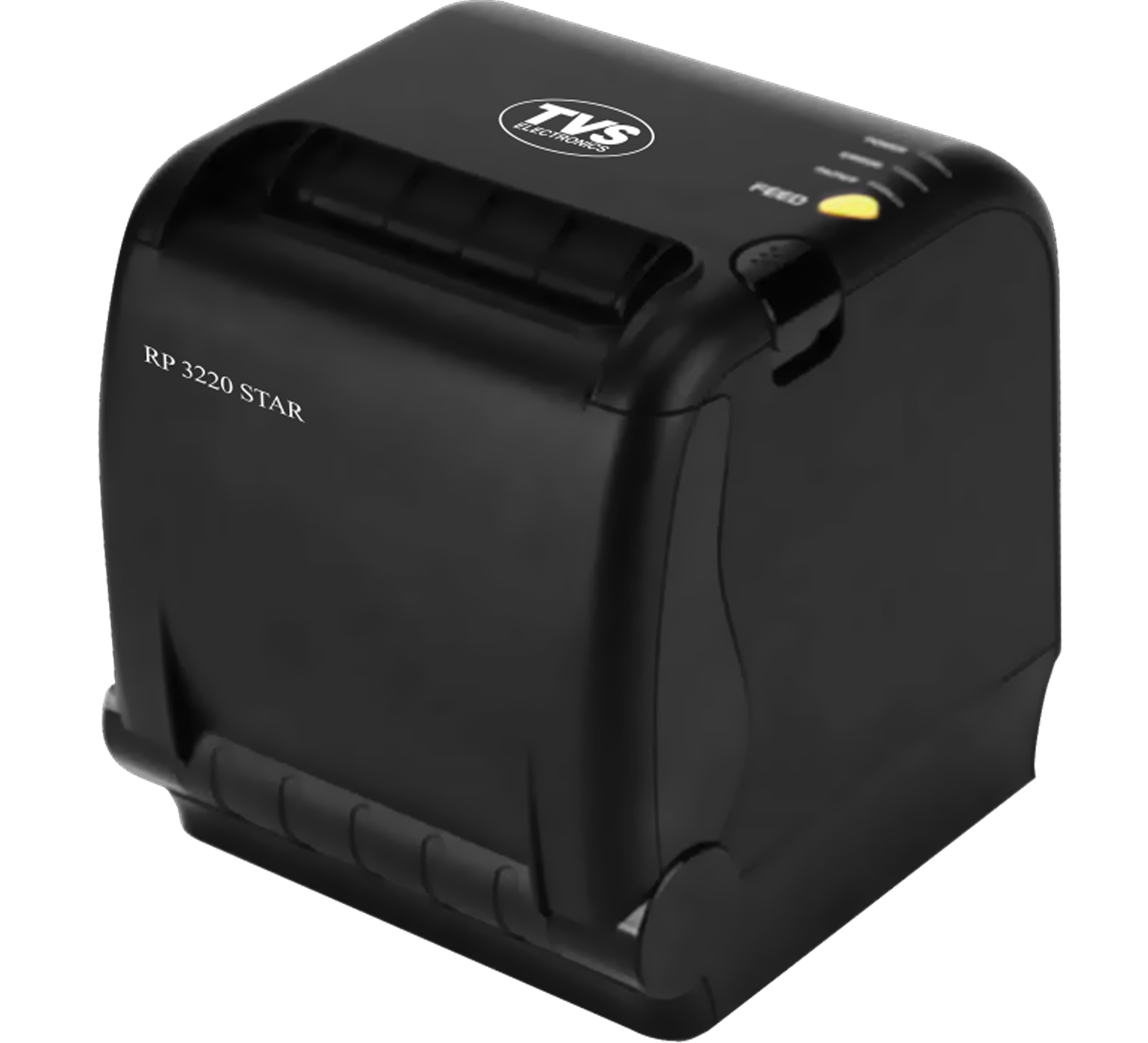

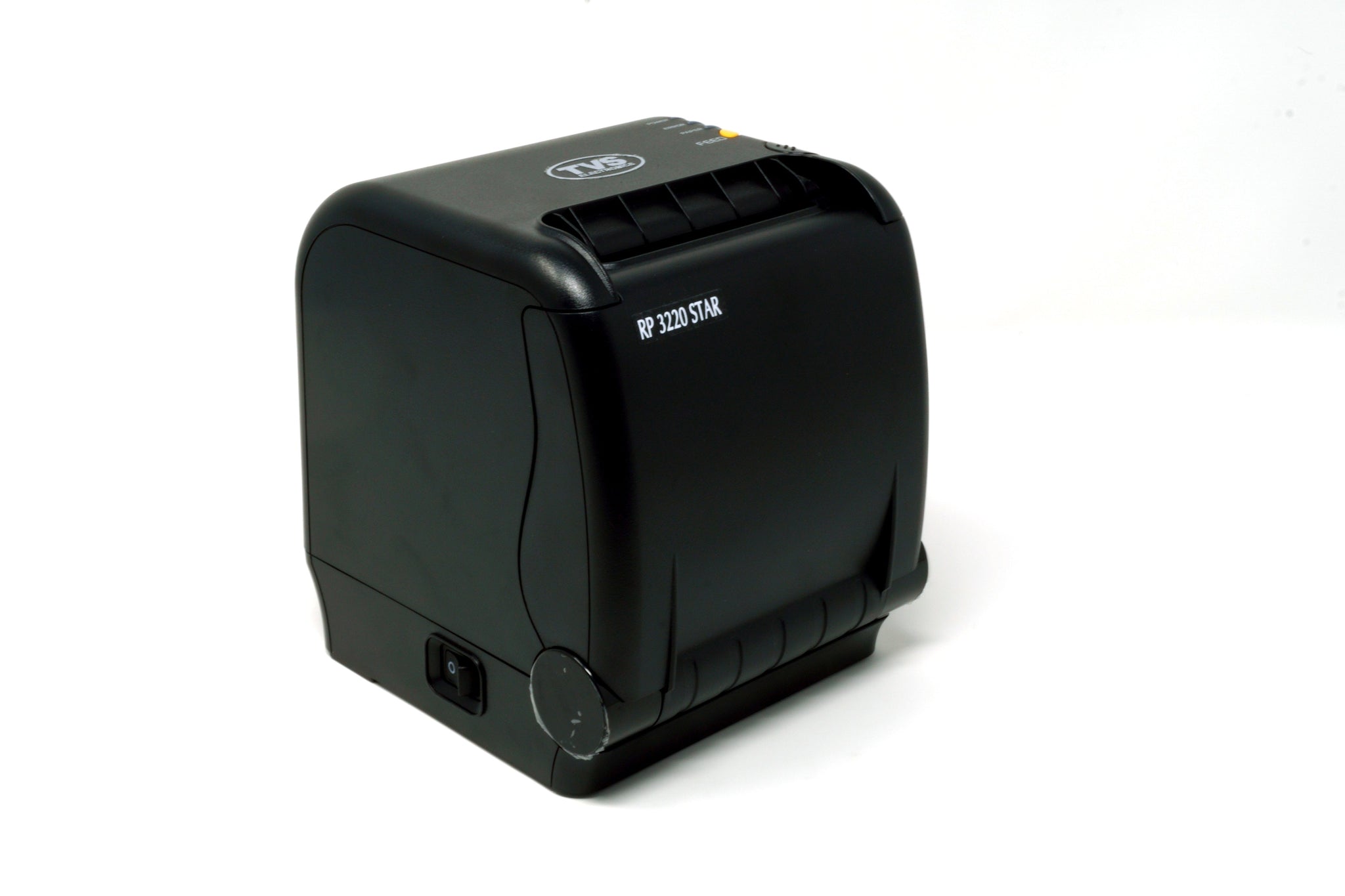

RP 3220 Star thermal printer comes with different wired and wireless options such as Serial, Ethernet, and wifi, which makes it an exemplary choice for Retail and Hospitality segments. Its High-speed printing enhances swift billing and ticketing, thus reducing long queues.
ADVANTAGES:
1. Compact Design with effective floor space utilization
2. Top and Front exit
3. Wall Mountable
4. Easy Paper load with Jam free design
ADVANTAGES:
1. Compact Design with effective floor space utilization
2. Top and Front exit
3. Wall Mountable
4. Easy Paper load with Jam free design
3-INCH / 80 MM
PAPER WIDTH
2 MB FLASH
MEMORY
EASY PAPER LOAD
JAM FREE DESIGN
200 MM/S
PRINT SPEED
180 DPI
RESOLUTION
| Product Specification | Details |
|---|---|
| Print Model | RP 3220 STAR |
| Printing Method | Direct Thermal-line printing |
| Resolution | 180 DPI |
| Max. Print Speed | 220 mm 8.7″/second |
| Max. Print Width | 72 mm 2.8″ |
| BARCODE 1D |
Code 11, Code 39, Code 93, Codabar, ISBT128, UPCA, UPCE, EAN8, EAN13, Code 128 with subsets A /B /C, Interleaved 2of5 |
| BARCODE 2D | PDF417, QR Code, DATA MATRIX |
| Flash Memory | 2 M |
| Paper Width | 80 mm |
| Paper Thickness | 0.065 mm |
| Paper Roll Diameter | 83 mm |

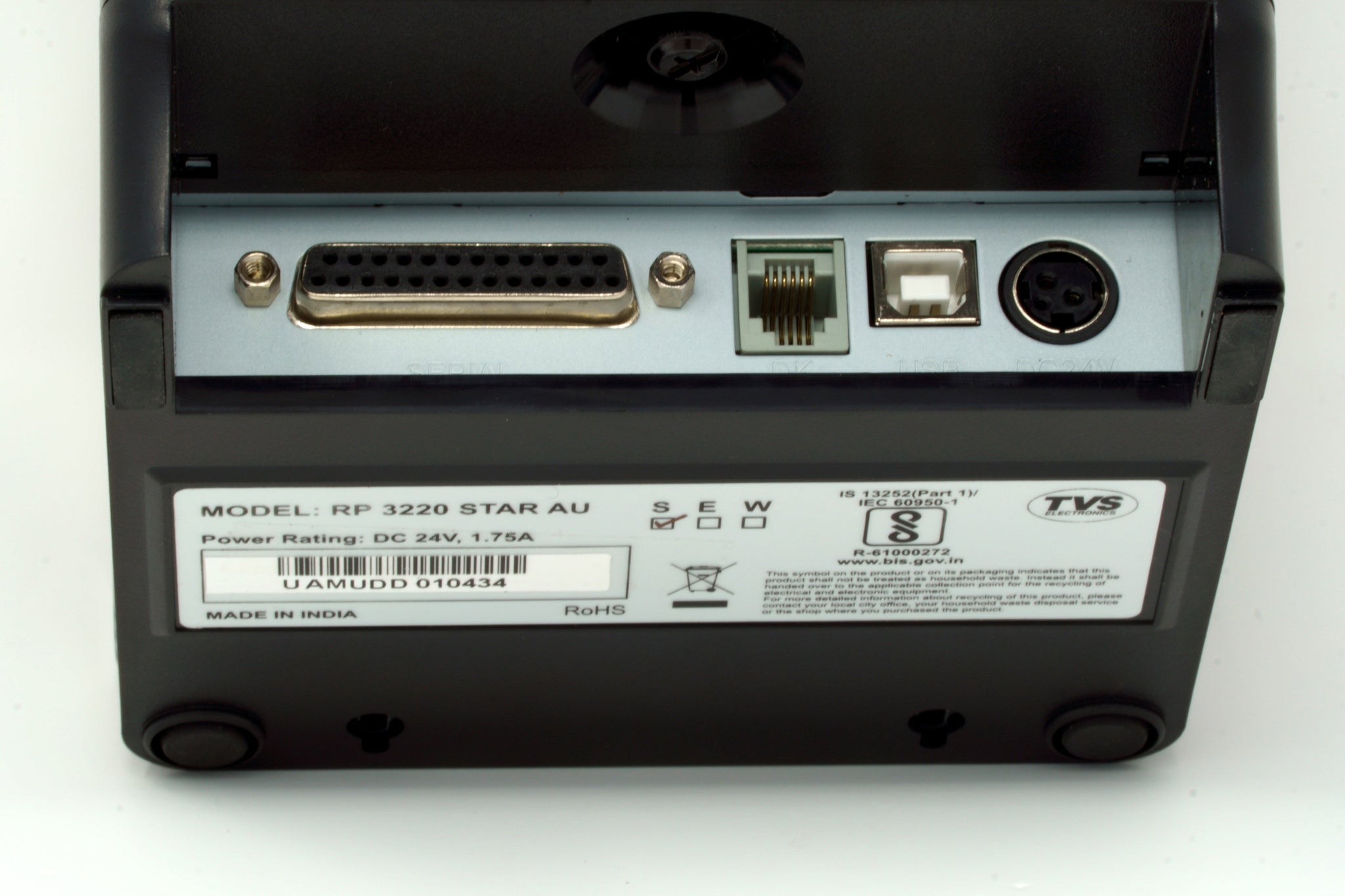

| Interface Standard | USBB type + SerialRS232C |
| Interface Option |
USBB type + Ethernet USBB type + serial + Wifi or Bluetooth |
| Power Type | External SMPS |
| Power AC | 100 ~ 240Vac 50/60 Hz |
| Power DC | 24Vdc / 1.75AMAX 83 mm |
| Sensor | Paper End, Cover Open |
| Print Head Life | 150 Km |
| Auto Cutter | 1,500,000 Cuts guillotine |
| Cash Drawer | DKD Cash Drawer 1Port |
| Emulation | ESC/POS Command compatible |
| Accessories | Wall mount |
| Dimensions | 130×140×154 mm W * D * H |
