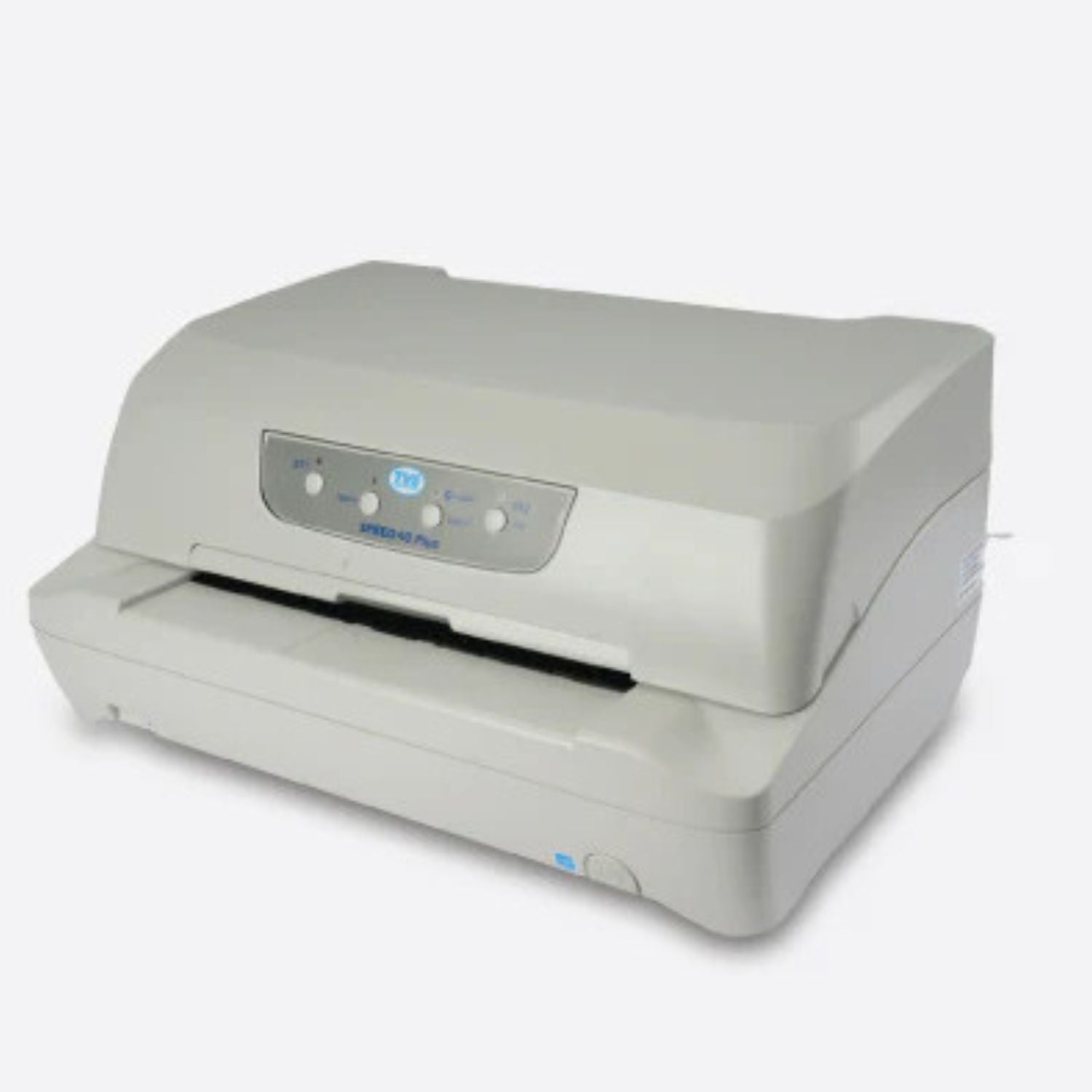

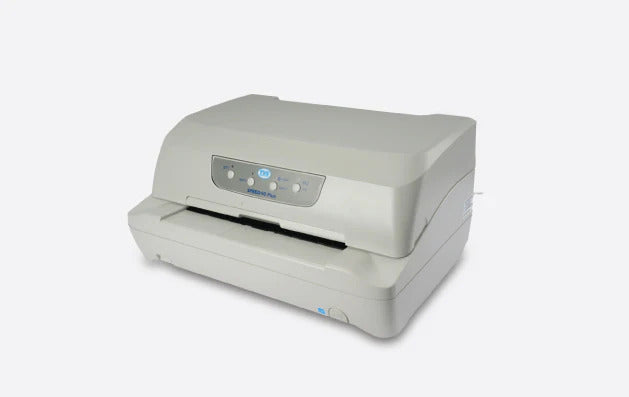

High Speed Multi-Function Passbook Printer
24 Wire, 94 Column with high speed of 580 cps, built-in duplex colour scanner
ADVANTAGES:
- Interface USB
- Supports A4 Duplex colour scanning
- Supports Passbooks – Vertical or Horizontal
- Print Head life: 400 Million Characters
- Ribbon life: 10 million characters
- MTBF: 10,000 POH
Specifications
| Product Specification | Details |
|---|---|
| Printing Technology | Impact Dot Matrix |
| Printing Speed | 580cps (VHSD), 520cps (HSD), 400cps (Draft), 200cps (NLQ), 133cps (LQ) |
| Scanner Specification | Front/rear colour scanner, 16M colors RGB, 256 grey levels, up to 600 dpi, Twain compatible, scan size from ID card to A4 |
| Scanning speed | Up to 15 inch/sec Mono, up to 7.5 inch/sec Colour |
| Line length | 94 columns @ 10cpi, 112 columns @ 12cpi, 141 columns @ 15cpi |
| Paper Handling | Single sheet, envelopes, labels, fanfold (40–200 g/m² – 0.65mm to 2.7mm), Passbook (horizontal and vertical), Sheet width 65-244mm, length 65-470mm |
| Copies | 1 original + 6 copies |
| Special Functions | Automatic Gap Adjustment, Auto Alignment, Auto Border Recognition, Optical Mark Reading, Auto Set-up |
| Display (optional) | LCD display / 2 lines with 16 characters each |
| Graphic Resolution | 60–360 (H) / 72–360 (V) |
| Character Set | 21 International Code Page, 28 Character Sets |
| Barcodes | UPC A/E, EAN 8/13, Code 11/39/93/128, 2/5 Interleaved, Postnet, Codabar, etc. |
| Resident Font | Draft, Courier, Gothic, Prestige, Script, OCR-A/B, Boldface |
| Resident Emulations | IBM 2390+, Epson LQ2550, IBM 9068, HPR 4915, etc. |
